Hybrid Linear Stepper Motor Haydon Kerk, Ø 57 mm
Lead time if the product is out of stock (business days):
35

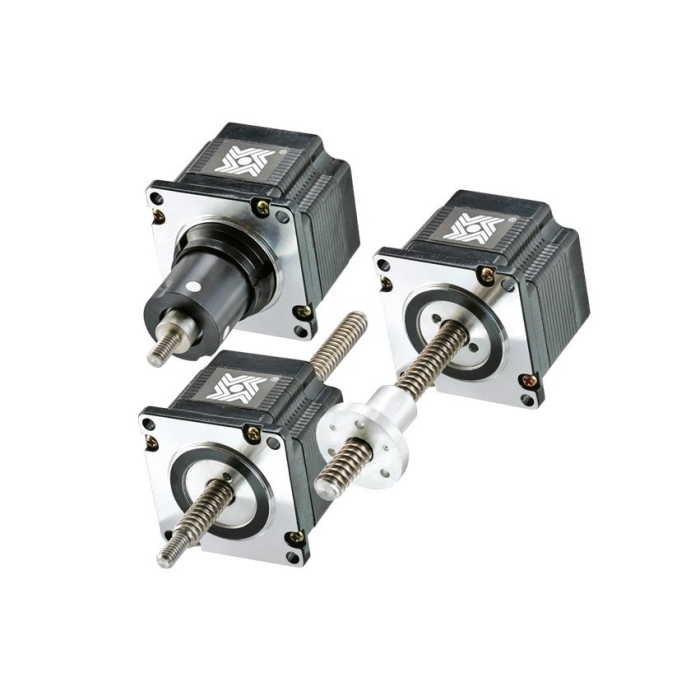

Series 57000 by Haydon Kerk Motion Solutions is a 57 mm stepper motor linear actuator.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 500 mm
• Locked-Stroke length, 12.7 - 63,5 mm
• Max. force 300 to 880 N
• Movement / step 3 - 50 μm
Hybrid stepper motor linear actuators open new avenues for equipment designers who require high performance and exceptional endurance in a very small package. Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
The various patent pending designs use a proprietary manufacturing process, which incorporates engineering thermoplastics in the rotor drive nut and a stainless steel acme lead screw. This allows the linear actuator to be much quieter, more efficient and more durable than the v-thread and bronze nut configuration commonly used in other linear actuators.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 500 mm
• Locked-Stroke length, 12.7 - 63,5 mm
• Max. force 300 to 880 N
• Movement / step 3 - 50 μm
Hybrid stepper motor linear actuators open new avenues for equipment designers who require high performance and exceptional endurance in a very small package. Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
The various patent pending designs use a proprietary manufacturing process, which incorporates engineering thermoplastics in the rotor drive nut and a stainless steel acme lead screw. This allows the linear actuator to be much quieter, more efficient and more durable than the v-thread and bronze nut configuration commonly used in other linear actuators.
| Size 23, 57 mm (2.3") Hybrid Linear Stepper Motor (1.8° step angle) | ||||||||
| Product No. | Captive | 57H4(X)-V | 57H6(X)-V | |||||
| Non-captive | 57F4(X)-V | 57F6(X)-V | ||||||
| External lin. | E57H4(X)-V | E57H6(X)-V | ||||||
| Wiring | Bipolar | Unipolar | ||||||
| Winding Voltage | 3.25 VDC | 5 VDC | 12 VDC | 5 VDC | 12 VDC | |||
| Current/Phase | 2 A | 1.3 A | 0.54 A | 1.3 A | 0.54 A | |||
| Resistance/Phase | 1.63 Ω | 3.85 Ω | 22.2 Ω | 3.85 Ω | 22.2 Ω | |||
| Inductance/Phase | 3.5 mH | 10.5 mH | 58 mH | 5.3 mH | 23.6 mH | |||
| Power Input | 13 W | |||||||
| Weight | 511 g | |||||||
| Length | 45 mm | |||||||
| Linear movement/step. Screw Ø 9.53 mm (0.375”) | Order Code | |||||||
| tuuma | mm | |||||||
| 0.001 | 0.0254 | 1 | ||||||
| 0.002 | 0.0508 | 2 | ||||||
| 0.0005 | 0.0127 | 3 | ||||||
| 0.0003125 | 0.0079 | A | ||||||
| 0.0004167 | 0.0105 | S | ||||||
| 0.0008333 | 0.0211 | T | ||||||
| Size 23, 57 mm (2.3") Hybrid Linear Stepper Motor (0.9° step angle) | ||||||||
| Product No. | Captive | 57K4(X)-V | 57K6(X)-V | |||||
| Non-captive | 57J4(X)-V | 57J6(X)-V | ||||||
| External lin. | E57K4(X)-V | E57K6(X)-V | ||||||
| Wiring | Bipolar | Unipolar | ||||||
| Winding Voltage | 3.25 VDC | 5 VDC | 12 VDC | 5 VDC | 12 VDC | |||
| Current/Phase | 2 A | 1.3 A | 0.54 A | 1.3 A | 0.54 A | |||
| Resistance/Phase | 1.63 Ω | 3.85 Ω | 22.2 Ω | 3.85 Ω | 22.2 Ω | |||
| Inductance/Phase | 4.2 mH | 13 mH | 68 mH | 6 mH | 27 mH | |||
| Power Input | 13 W | |||||||
| Weight | 511 g | |||||||
| Length | 45 mm | |||||||
| Linear movement/step. Screw Ø 9.53 mm (0.375”) | Order Code | |||||||
| tuuma | mm | |||||||
| 0.001 | 0.0254 | 1 | ||||||
| 0.0005 | 0.0127 | 3 | ||||||
| 0.00025 | 0.00635 | 9 | ||||||
| 0.00015625 | 0.003969 | P | ||||||
| 0.0004167 | 0.01058418 | S | ||||||
| 0.00020833 | 0.00529166 | X | ||||||
| 0.000125 | 0.0031 | 7 | ||||||
| Series | Hybrid |
|---|---|
| Product type | Linear stepper motor |
| Brand | Haydon Kerk |
