Hybrid Linear Stepper Motor Haydon Kerk, Ø 87 mm
Lead time if the product is out of stock (business days):
35

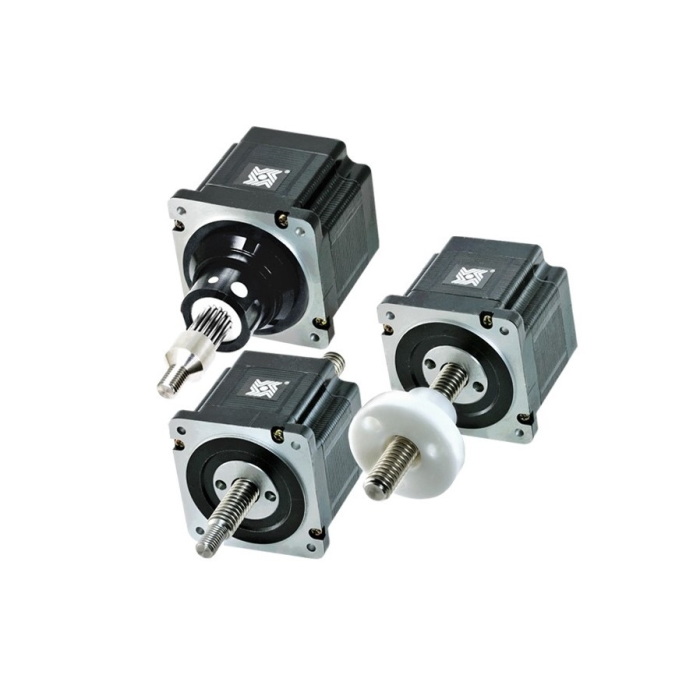

Series 87000 by Haydon Kerk Motion Solutions is a 87 mm stepper motor linear actuator.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 500 mm
• Stroke (captive), 12.7 - 63.5 mm
• Max. force 400 - 2200 N
• Movement / step 12.7 - 127 μm
Hybrid stepper motor linear actuators open new avenues for equipment designers who require high performance and exceptional endurance in a very small package. Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
The various patent pending designs use a proprietary manufacturing process, which incorporates engineering thermoplastics in the rotor drive nut and a stainless steel acme lead screw. This allows the linear actuator to be much quieter, more efficient and more durable than the v-thread and bronze nut configuration commonly used in other linear actuators.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 500 mm
• Stroke (captive), 12.7 - 63.5 mm
• Max. force 400 - 2200 N
• Movement / step 12.7 - 127 μm
Hybrid stepper motor linear actuators open new avenues for equipment designers who require high performance and exceptional endurance in a very small package. Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
The various patent pending designs use a proprietary manufacturing process, which incorporates engineering thermoplastics in the rotor drive nut and a stainless steel acme lead screw. This allows the linear actuator to be much quieter, more efficient and more durable than the v-thread and bronze nut configuration commonly used in other linear actuators.
| Size 23, 57 mm (2.3") hybrid linear stepper motor (1.8° step angle) | ||||||||
| Product No. | Captive | 87H4(X)-V | 87H6(X)-V | |||||
| Non-captive | 87F4(X)-V | 87F6(X)-V | ||||||
| External lin. | E87H4(X)-V | E87H6(X)-V | ||||||
| Wiring | Bipolar | Unipolar | ||||||
| Winding Voltage | 2.85 VDC | 5 VDC | 12 VDC | 5 VDC | 12 VDC | |||
| Current/Phase | 5.47 A | 3.12 A | 1.3 A | 3.12 A | 1.3 A | |||
| Resistance/Phase | 0.52 Ω | 1.6 Ω | 9.23 Ω | 1.6 Ω | 9.23 Ω | |||
| Inductance/Phase | 2.86 mH | 8.8 mH | 51 mH | 4.4 mH | 25.5 mH | |||
| Power Input | 31.2 W | |||||||
| Weight | 2300 g | |||||||
| Linear movement/step. Screw Ø 15,88 mm (0.625”) | Order Code | |||||||
| Inches | mm | |||||||
| 0.001 | 0.0254 | 1 | ||||||
| 0.002 | 0.0508 | 2 | ||||||
| 0.0005 | 0.0127 | 3 | ||||||
| 0.0003125 | 0.0079 | A | ||||||
| 0.0004167 | 0.0105 | S | ||||||
| 0.0008333 | 0.0211 | T | ||||||
| Series | Hybrid |
|---|---|
| Product type | Linear stepper motor |
| Brand | Haydon Kerk |
