Hybrid Linear Stepper Motor Haydon Kerk, Ø 21 mm
Lead time if the product is out of stock (business days):
35Series 21000 by Haydon Kerk Motion Solutions is a 21 mm hybrid stepper motor linear actuator.

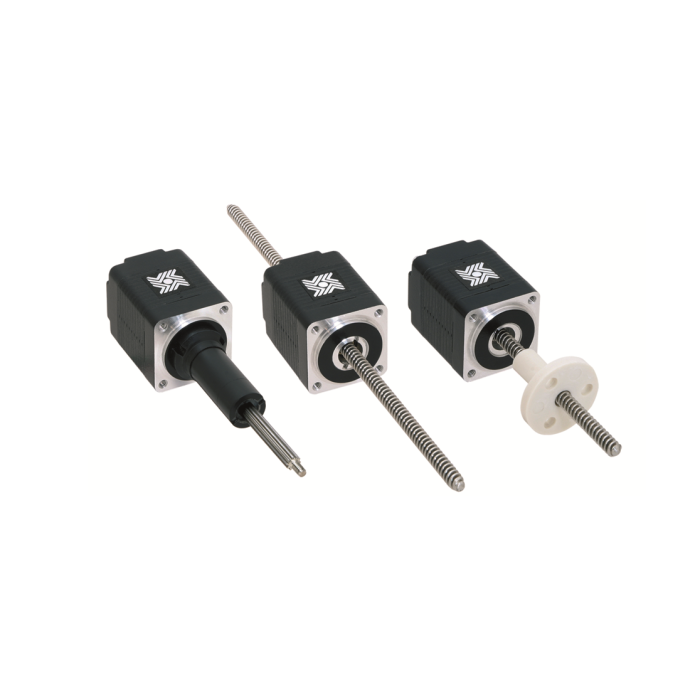

• Available in three designs - captive, non-captive and external linear versions
• Step angle 1,8°, bipolar
• Stroke (non-captive, external), up to 200 mm
• Locked-Stroke length, 9 - 38 mm
• Max. force 10 - 45 N
• Movement / step 1.5 - 40 μm
Hybrid stepper motor linear actuators open new avenues for equipment designers who require high performance and exceptional endurance in a very small package. Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
The various patent pending designs use a proprietary manufacturing process, which incorporates engineering thermoplastics in the rotor drive nut and a stainless steel acme lead screw. This allows the linear actuator to be much quieter, more efficient and more durable than the v-thread and bronze nut configuration commonly used in other linear actuators.
• Available in three designs - captive, non-captive and external linear versions
• Step angle 1,8°, bipolar
• Stroke (non-captive, external), up to 200 mm
• Locked-Stroke length, 9 - 38 mm
• Max. force 10 - 45 N
• Movement / step 1.5 - 40 μm
Hybrid stepper motor linear actuators open new avenues for equipment designers who require high performance and exceptional endurance in a very small package. Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
The various patent pending designs use a proprietary manufacturing process, which incorporates engineering thermoplastics in the rotor drive nut and a stainless steel acme lead screw. This allows the linear actuator to be much quieter, more efficient and more durable than the v-thread and bronze nut configuration commonly used in other linear actuators.
Size 8, Series 21000 Hybrid Linear Stepper Motor (1.8° step angle) | ||||||
Product No. | Locked Structure | 21H4(X)-V | ||||
Free Structure | 21F4(X)-V | |||||
External Locking | E21H4(X)-V | |||||
Wiring | Bipolar | |||||
Winding Voltage | 2.5 VDC | 5 VDC | 7.5 VDC | |||
Current/Phase | 0.49 A | 0.24 A | 0.16 A | |||
Resistance/Phase | 5.1 Ω | 20.4 Ω | 45.9 Ω | |||
Inductance/Phase | 1.5 mH | 5 mH | 11.7 mH | |||
Power Input | 2.45 W | |||||
Weight | 43 g | |||||
Linear movement/step Screw 3.50 mm (0.138”) | Order code | |||||
Inches | mm | |||||
0.000098 | 0.0025 | AA | ||||
0.00019 | 0.005 | AB | ||||
0.00039 | 0.01 | AC | ||||
0.00078 | 0.02 | AD | ||||
0.00157 | 0.04 | AE | ||||
0.00048 | 0.0121 | J | ||||
0.00024 | 0.006 | K | ||||
0.00012 | 0.003 | N | ||||
0.00006 | 0.0015 | U |
Series | Hybrid |
---|---|
Product type | Linear stepper motor |
Brand | Haydon Kerk |
