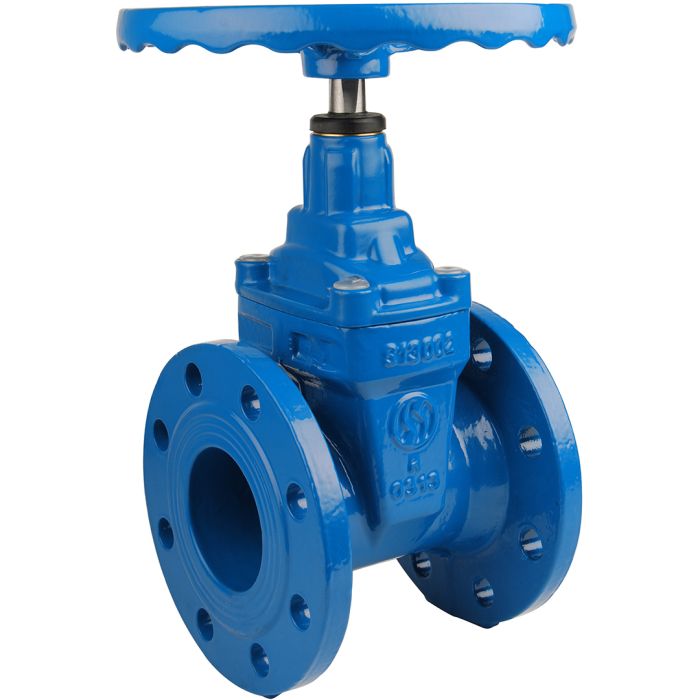

Rubber wedge gate valve | Ductile iron | Flanged | Series 180
Technical data
Sizes: DN40-DN1000
Connection: Flanged PN10/16
Temperature range: -10 °C ... +70 °C
Nominal pressure:
- 16 bar up to DN400
- 10 bar from DN400 upwards
Design and features:
- Full bore design
- Non-rising stem
- Closes clockwise (CTC - Clockwise to Close)
- Epoxy coating RAL 5005, thickness 250 μm, GSK certified
Sizes: DN40-DN1000
Connection: Flanged PN10/16
Temperature range: -10 °C ... +70 °C
Nominal pressure:
- 16 bar up to DN400
- 10 bar from DN400 upwards
Design and features:
- Full bore design
- Non-rising stem
- Closes clockwise (CTC - Clockwise to Close)
- Epoxy coating RAL 5005, thickness 250 μm, GSK certified
| Series | 180 |
|---|---|
| Product type | Rubber wedge gate valve |
| Pressure class | PN16 |
| Pipe connection | Flanged |
| Flange standard | EN1092 PN10/16 |
| Material (body) | Ductile iron |
| Material (body, std) | GGG50 |
| Trim material | Ductile iron+EPDM |
| Tightness direction | Bidirectional |
| Max ambient temperature (°C) | 70 |
| Min ambient temperature (°C) | -10 |
| Valve operation device | Handwheel |
