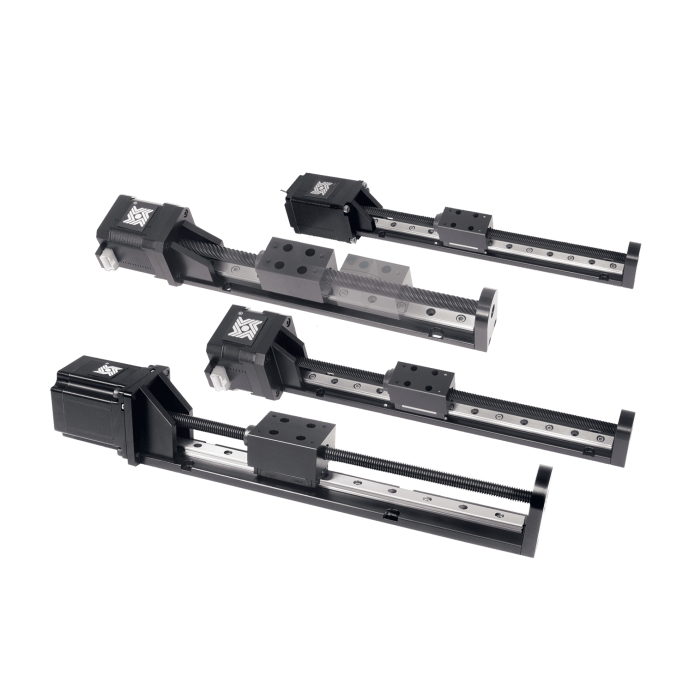

Linear rail Haydon Kerk Haydon Kerk, 100 - 1000 N, 19/29/41 mm
Lead time if the product is out of stock (business days):
35Haydon Kerk Series BGD
• The BGS Linear Rail combines many technologies into a single integrated linear motion platform.
• The system provides excellent load capability and is engineered for both normal and overhanging loads.
• High roll, pitch, and yaw moment loading capability allows the system to maintain tight accuracy and repeatability, even in applications requiring significant cantilevered loading.
• The lead screw drives a machined aluminum carriage mounted to a precision stainless steel ball rail resulting in a rigid, smooth-operating motion system.
• Black Ice® TFE coated screw provides a permanent wear-resistant dry lubrication.
• When integrated with an IDEA Drive, the system combines Haydon hybrid linear actuator technology with a fully programmable, integrated stepper motor drive.
• By combining technologies into a single preassembled unit, Haydon Kerk Motion Solutions is able to improve system integration for the equipment OEM or end user.
• The overall cost for the customer is also lowered by offering a complete solution as it eliminates the need for rotary-to-linear conversion, and simplified product development.
• The BGS Linear Rail combines many technologies into a single integrated linear motion platform.
• The system provides excellent load capability and is engineered for both normal and overhanging loads.
• High roll, pitch, and yaw moment loading capability allows the system to maintain tight accuracy and repeatability, even in applications requiring significant cantilevered loading.
• The lead screw drives a machined aluminum carriage mounted to a precision stainless steel ball rail resulting in a rigid, smooth-operating motion system.
• Black Ice® TFE coated screw provides a permanent wear-resistant dry lubrication.
• When integrated with an IDEA Drive, the system combines Haydon hybrid linear actuator technology with a fully programmable, integrated stepper motor drive.
• By combining technologies into a single preassembled unit, Haydon Kerk Motion Solutions is able to improve system integration for the equipment OEM or end user.
• The overall cost for the customer is also lowered by offering a complete solution as it eliminates the need for rotary-to-linear conversion, and simplified product development.
Model | BGS 04 | BGS 06 | BGS 08 | |
Motor size long/ short | 28 x 28 (long), 43 x 43 (short) | 43 x 43 (long), 43 x 43 (short) | 57 x 57 (long), 57 x 57 (short) | |
Maximum stroke length | 460 mm | 610 mm | 760 mm | |
Maximum horizontal load | 100 N | 600 N | 1000 N | |
Profile width | 19 mm | 29 mm | 41 mm | |
Roll Moment | 7.75 Nm | 15.75 Nm | 30.5 | |
Pitch Moment | 6.60 Nm | 10.75 Nm | 26.25 Nm | |
Yaw Moment | 7.70 Nm | 12.40 Nm | 30.20 | |
Screw rise mm | ||||
0.635 | • | |||
1.00 | • | |||
1.27 | • | • | ||
1.59 | • | |||
2.00 | • | • | ||
2.50 | • | |||
2.52 | • | • | • | |
3.00 | • | |||
3.18 | ||||
4.00 | • | |||
5.00 | • | • | ||
5.08 | • | • | • | |
6.35 | • | • | ||
8.00 | ||||
9.53 | • | |||
10.00 | • | |||
10.16 | • | |||
12.00 | • | |||
12.70 | • | • | • | |
16.00 | • | |||
19.05 | • | • | ||
25.00 | • | |||
25.40 | • | • | • | |
30.48 | • |
Series | BGD |
---|---|
Manufacturer | Haydon Kerk |
Manufacturer code | Haydon Kerk, 100 - 1000 N, 19/29/41 mm |
