Can-Stack Linear Stepper Motor Haydon Kerk, G4 37000 Ø 36 mm
Lead time if the product is out of stock (business days):
35

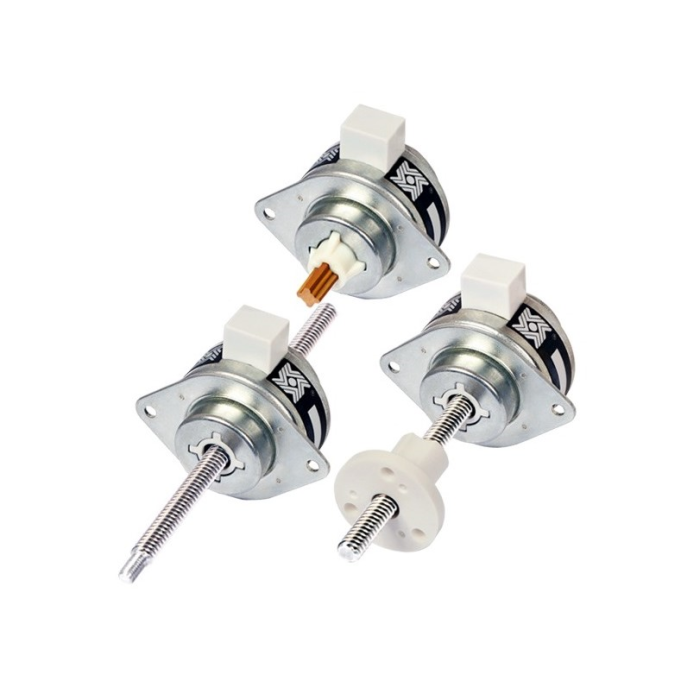

Series G4 37000 by Haydon Kerk Motion Solutions is a 36 mm stepper motor linear actuator.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 150 mm
• Stroke (captive), 17 - 43 mm
• Max. force 70 - 260 N
• Movement / step 13 - 100 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 150 mm
• Stroke (captive), 17 - 43 mm
• Max. force 70 - 260 N
• Movement / step 13 - 100 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
| Stepper Motor Linear Actuator 36 mm (1.4") HSI 37000, G4-series | |||||||
| Product No. | Captive | 3744 (X)-V | 3754 (X)-V | ||||
| Non-captive | 3734 (X)-V | 3784 (X)-V | |||||
| External lin. | E3744 (X)-V | E3754 (X)-V | |||||
| Wiring | Bipolar | ||||||
| Step Angle | 7.5° | 15° | |||||
| Winding Voltage | 5 VDC | 12 VDC | 5 VDC | 12 VDC | |||
| Current/Phase | 561 mA | 230 mA | 561 mA | 230 mA | |||
| Resistance/Phase | 8.9 Ω | 52 Ω | 8.9 Ω | 52 Ω | |||
| Inductance/Phase | 11.6 mH | 65 mH | 8.5 mH | 46 mH | |||
| Power Input | 5.6 W | ||||||
| Weight | 120 g | ||||||
| Step Angle | Inches | mm | Order Code | ||||
| 7.5° | 0.0005 | 0.013 | 3 | ||||
| 7.5° | 0.001 | 0.025 | 1 | ||||
| 7.5° | 0.002 | 0.051 | 2 | ||||
| 15° | 0.001 | 0.025 | 1 | ||||
| 15° | 0.002 | 0.051 | 2 | ||||
| 15° | 0.004 | 0.102 | 4 | ||||
| Series | Can-Stack |
|---|---|
| Product type | Linear stepper motor |
| Brand | Haydon Kerk |
