Can-Stack Linear Stepper Motor Haydon Kerk, G4 25000 Ø 25 mm
Lead time if the product is out of stock (business days):
35

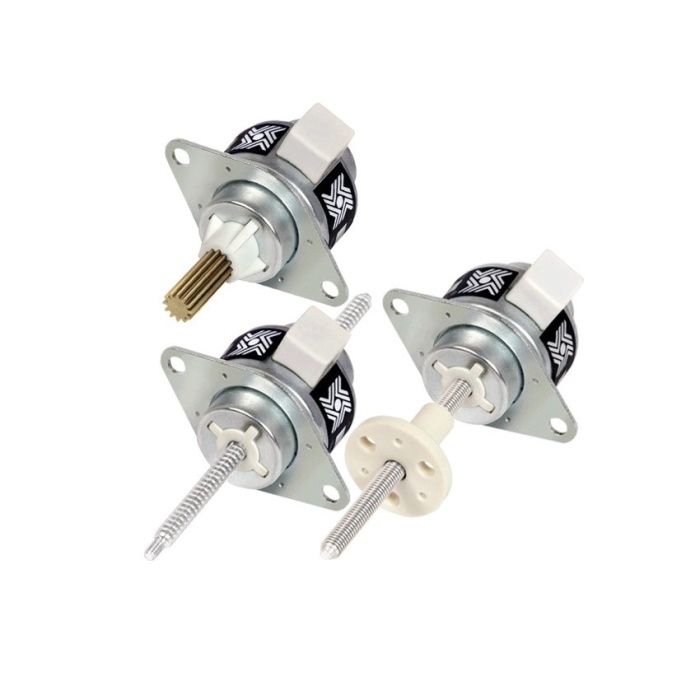

Series G4 25000 by Haydon Kerk Motion Solutions is a 25 mm stepper motor linear actuator.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 150 mm
• Stroke (captive), 15.5 mm
• Max. force 15 - 160 N
• Movement / step 3 - 100 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 150 mm
• Stroke (captive), 15.5 mm
• Max. force 15 - 160 N
• Movement / step 3 - 100 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
| Can-Stack Stepper Motor G4 25000 Series Ø 25 mm | |||||||
| Wiring | Bipolar | ||||||
| Product No. | Captive | 2544X-V | 2554X-U | ||||
| Non-captive | 2534X-V | 2584X-V | |||||
| External lin. | E2544(X)-U | E2554(X)-V | |||||
| Wiring | Bipolaarinen | ||||||
| Step Angle | 7.5° | 15° | |||||
| Winding Voltage | 5 VDC | 12 VDC | 5 VDC | 12 VDC | |||
| Current/Phase | 385 mA | 160 mA | 385 mA | 160 mA | |||
| Resistance/Phase | 13 Ω | 72 Ω | 13 Ω | 72 Ω | |||
| Inductance/Phase | 10.6 mH | 60 mH | 8.08 mH | 48 mH | |||
| Power Input | 3.85 W | ||||||
| Weight | 49 g | ||||||
| Step Angle | Inches | mm | Order Code | ||||
| 7.5° | 0.0005 | 0.013 | 3 | ||||
| 7.5° | 0.001 | 0.0254 | 1 | ||||
| 7.5° | 0.002 | 0.051 | 2 | ||||
| 15° | 0.001 | 0.0025 | 1 | ||||
| 15° | 0.002 | 0.051 | 2 | ||||
| 15° | 0.004 | 0.102 | 4 | ||||
| Series | Can-Stack |
|---|---|
| Product type | Linear stepper motor |
| Brand | Haydon Kerk |
