Can-Stack Linear Stepper Motor Haydon Kerk, Z20000 Ø 20 mm

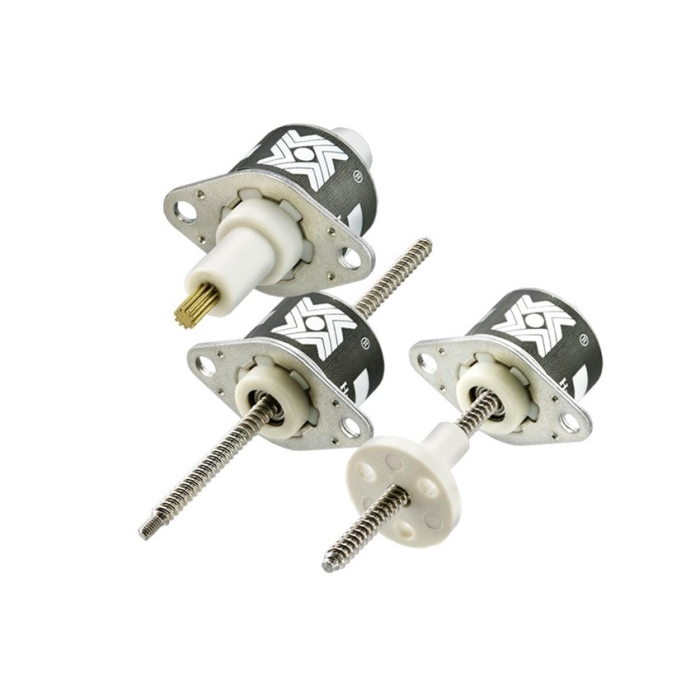

Series Z20000 by Haydon Kerk Motion Solutions is a 20 mm stepper motor linear actuator.

• Available in three designs - captive, non-captive and external linear versions
• Step angle 15°, bipolar
• Stroke (non-captive, external), up to 150 mm
• Locked-Stroke length, 12.7 mm
• Max. force 3 to 35 N
• Movement / step 25 - 100 μm

Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.

Linear Stepper Motor 20 mm (3/4") HSI Z20000 Series
Product No.	Captive	Z-2054 X-V
	Non-captive	Z-2084X-V
	External lin.	Z-2054(X)-V
Wiring		Bipolar
Step angle		15°
Winding voltage		5 VDC	12 VDC
Current/Phase		250 mA	100 mA
Resistance/Phase		20 Ω	118 Ω
Inductance/Phase		5.4 mH	27 mH
Power input		2.5 W
Weight		24.1 g
Linear Movement/Step
Step Angle	Inches	mm	Order Code
15°	0.001	0.0254	1
15°	0.002	0.051	2
15°	0.004	0.102	4
