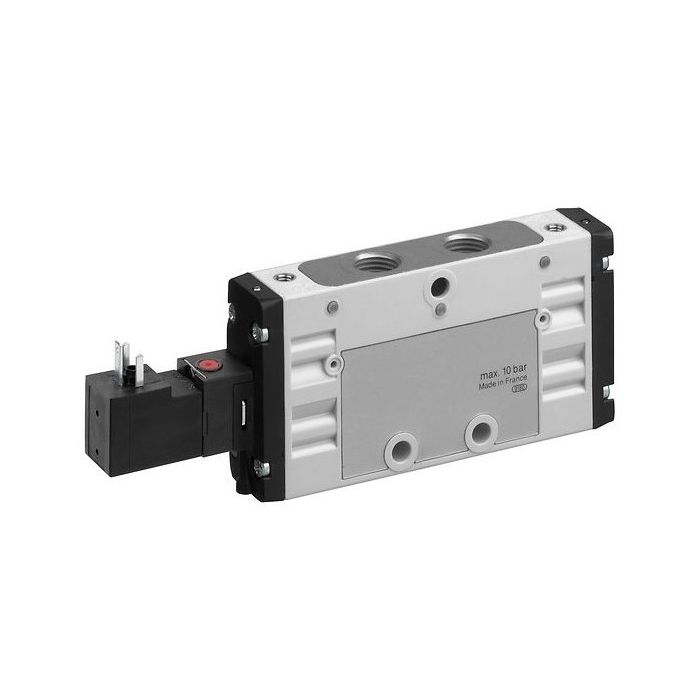

Pneumatic valve AVENTICS 0820058028
Lead time if the product is out of stock (business days):
35AVENTICS Series TC15
• TC15 valve system is the perfect choice for applications calling for lightweight valves with high flow rate in a small space
• With valves operated either pneumatically or electrically, the valve system can be modularly expanded to up to 12 valves.
• Valves can be exchanged without dismantling the valve block
• TC15 valve system is the perfect choice for applications calling for lightweight valves with high flow rate in a small space
• With valves operated either pneumatically or electrically, the valve system can be modularly expanded to up to 12 valves.
• Valves can be exchanged without dismantling the valve block
Series | TC15 |
---|---|
Activation | Electrical |
Valve type | 5/2 |
Supply voltage | 230V/50-60Hz |
Rated current Qn (l/min) | 1500 |
Min. working pressure (bar) | 3 |
Max. working pressure (bar) | 10 |
Min. ambient temperature (°C) | -10 |
Max. ambient temperature (°C) | 50 |
Min. control pressure (bar) | 3 |
Max. control pressure (bar) | 10 |
Actuation | Internal |
Compressed air connection output | G1/4 |
Manual override | With detent |
Electrical connection 2 | Plug |
Electrical connection size | ISO 15217, Form C |
Sealing Principle | Soft seal |
Connection type | Pipe |
Return | With spring return |
Number of poles | 3-pin |
Voltage tolerance (AC, 50Hz) | -10% / +10% |
Voltage tolerance (AC, 60Hz) | -10% / +10% |
Heat resistance | -25°C |
Width Control valve (mm) | 15 |
Basic valve with electrical connector | Basic valve without coil |
IP-Class | IP65 |
Brand | AVENTICS |
