V204 | Ball valve with pneumatic actuator | DN25 / 1" | PN40 | Female thread | Nickel plated brass | Spring return actuator
Lead time if the product is out of stock (business days):
28

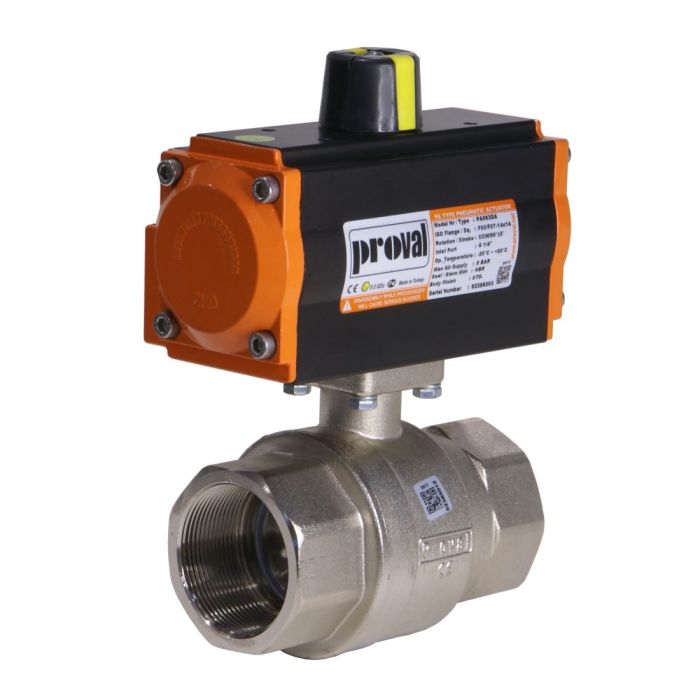

V204 2-Piece Brass Ball Valve with A210 actuator assembly
Brass ball valves are well suited for non-corrosive media like water, waste water, oils and chemicals, providing a cost-effective solution when pressure and temperature values are moderate.
The rack and pinion actuator is pre-dimensioned to suit normal operating conditions within specified pressure and temperature ranges.
Features:
Available in DN15–100
Available with female threads
Available with double-acting or spring-return actuator
ISO 5211 actuator mounting flange
Brass ball valves are well suited for non-corrosive media like water, waste water, oils and chemicals, providing a cost-effective solution when pressure and temperature values are moderate.
The rack and pinion actuator is pre-dimensioned to suit normal operating conditions within specified pressure and temperature ranges.
Features:
Available in DN15–100
Available with female threads
Available with double-acting or spring-return actuator
ISO 5211 actuator mounting flange
| Series | V204 |
|---|---|
| Product type | Ball valve with pneumatic actuator |
| Nominal size (DN) | 25 |
| Pipe connection | Female thread |
| Connection size | 1" |
| Thread standard | ISO 7/1 Rp |
| Pressure class | PN40 |
| Material (body) | Nickel plated brass |
| Trim material | Brass |
| Sealing material | Teflon (PTFE) |
| Tightness direction | Bidirectional |
| Pneumatic action | Spring return |
| ISO5211 actuator mounting | Yes |
| Brand | Proval |
| Actuator description | PA063SR |
