Can-Stack Linear Stepper Motor Haydon Kerk, Z26000 Ø 26 mm
Lead time if the product is out of stock (business days):
35

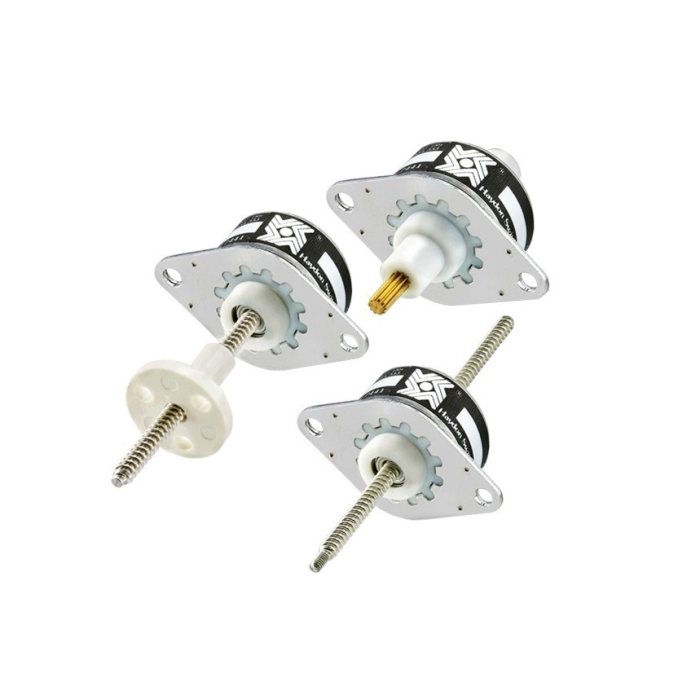

Series Z26000 by Haydon Kerk Motion Solutions is a 26 mm stepper motor linear actuator.
• Available in three designs - captive, non-captive and external linear versions.
• Stroke (non-captive, external), up to 150 mm
• Stroke (captive), 12.7 - 31 mm
• Max. force 10 - 80 N
• Movement / step 13 - 100 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
• Available in three designs - captive, non-captive and external linear versions.
• Stroke (non-captive, external), up to 150 mm
• Stroke (captive), 12.7 - 31 mm
• Max. force 10 - 80 N
• Movement / step 13 - 100 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
| Can-Stack Stepper Motor Z26000 Series Ø 26 mm | |||||||||||
| Product No. | Captive | Z-2644(X)-V | Z-2654(X)-V | Z-2646(X)-V | Z-2656(X)-V | ||||||
| Non-captive | Z-2634(X)-V | Z-2684(X)-V | Z-2636(X)-V | Z-2686(X)-V | |||||||
| Wiring | Bipolar | Unipolar | |||||||||
| Step Angle | 7.5° | 15° | 7.5° | 15° | |||||||
| Winding Voltage | 5 VDC | 12 VDC | 5 VDC | 12 VDC | 5 VDC | 12 VDC | 5 VDC | 12 VDC | |||
| Current/Phase | 338 mA | 140 mA | 338 mA | 140 mA | 338 mA | 140 mA | 338 mA | 140 mA | |||
| Resistance/Phase | 14.7 Ω | 84 Ω | 14.7 Ω | 84 Ω | 14.7 Ω | 84 Ω | 14.7 Ω | 84 Ω | |||
| Inductance/Phase | 8.5 mH | 55 mH | 6.7 mH | 44 mH | 4.3 mH | 24 mH | 3.4 mH | 19 mH | |||
| Power Input | 3.4 W | ||||||||||
| Weight | 34 g | ||||||||||
| Step Angle | Inches | mm | Order Code | ||||||||
| 7.5° | 0.0005 | 0.013 | 3 | ||||||||
| 7.5° | 0.001 | 0.0254 | 1 | ||||||||
| 7.5° | 0.002 | 0.051 | 2 | ||||||||
| 15° | 0.00164 | 0.04166 | AS | ||||||||
| 15° | 0.002 | 0.051 | 2 | ||||||||
| 15° | 0.004 | 0.102 | 4 | ||||||||
| Series | Can-Stack |
|---|---|
| Product type | Linear stepper motor |
| Brand | Haydon Kerk |
