Double Stack-Hybrid Linear Stepper Motor Haydon Kerk 43000 Ø 43 mm
Lead time if the product is out of stock (business days):
35
Series 43000 by Haydon Kerk Motion Solutions is a 43 mm stepper motor linear actuator.

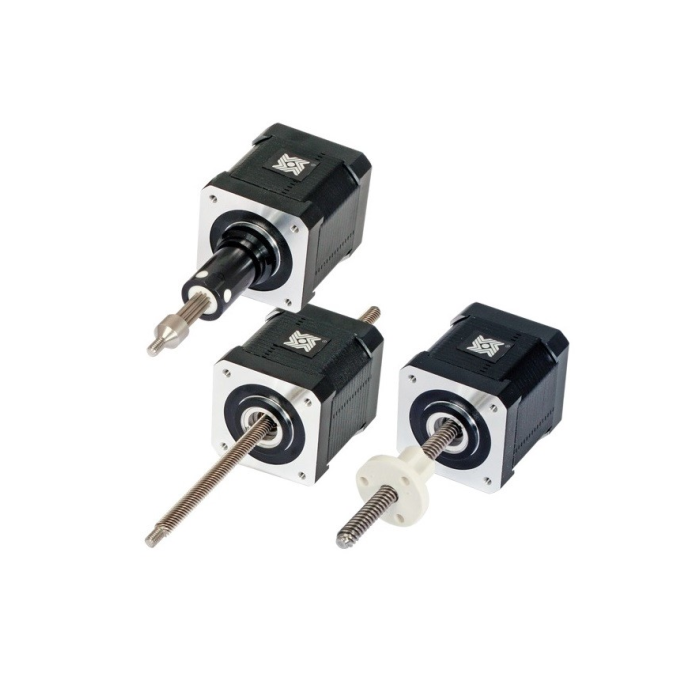

• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 400 mm
• Stroke (captive), 12.7 – 63.5 mm
• Max. force 50 - 350 N
• Movement / step 15.8 - 127 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 400 mm
• Stroke (captive), 12.7 – 63.5 mm
• Max. force 50 - 350 N
• Movement / step 15.8 - 127 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
| Size 17, 43 mm (1.7"), Double Stack Linear hybrid stepper motor (1.8° step angle) | ||||||
| Product No. | Captive | 43M4(X)-V | ||||
| Non-captive | 43L4(X)-V | |||||
| External lin. | E43M4(X)-V | |||||
| Wiring | Bipolar | |||||
| Winding Voltage | 2.33 VDC | 5 VDC | 12 VDC | |||
| Current/Phase | 2.6 A | 1.3 A | 550 mA | |||
| Resistance/Phase | 0.9 Ω | 3.8 Ω | 21.9 Ω | |||
| Inductance/Phase | 1.33 mH | 8.21 mH | 45.1 mH | |||
| Power Input | 10.4 W | |||||
| Weight | 352 g | |||||
| Length | 48 mm | |||||
| Linear Travel/Step. Screw Ø 6.35 mm (0.250") | Code I.D. | |||||
| Inches | mm | |||||
| 0.00375 | 0.0953 | AG | ||||
| 0.000625 | 0.0158 | B | ||||
| 0.00125 | 0.0317 | C | ||||
| 0.0025 | 0.0635 | Y | ||||
| 0.005 | 0.127 | Z | ||||
| Series | Double Stack |
|---|---|
| Product type | Linear stepper motor |
| Brand | Haydon Kerk |
