Double Stack-Hybrid Linear Stepper Motor Haydon Kerk, 57000 Ø 57 mm
Lead time if the product is out of stock (business days):
35

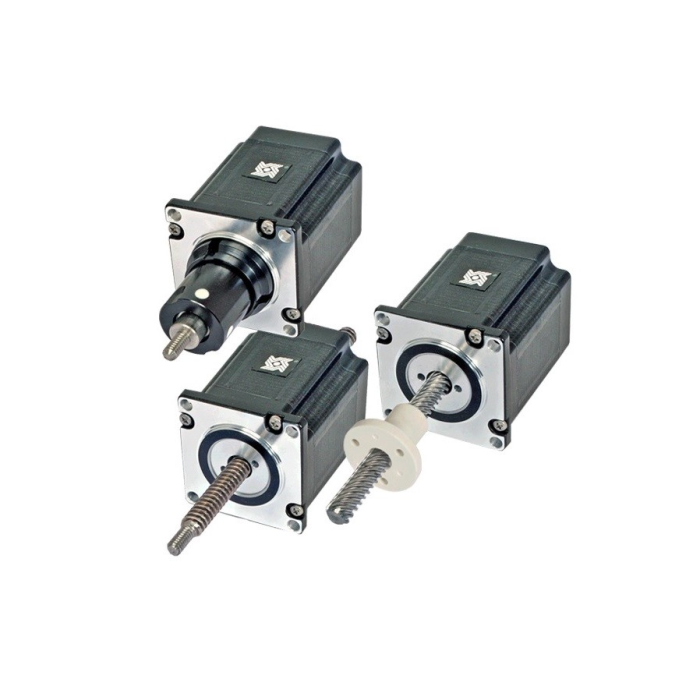

Series 57000 by Haydon Kerk Motion Solutions is a 57 mm stepper motor linear actuator.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 500 mm
• Stroke (captive), 12.7 – 63.5 mm
• Max. force 150 - 880 N
• Movement / step 12.7 - 127 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
• Available in three designs - captive, non-captive and external linear versions
• Stroke (non-captive, external), up to 500 mm
• Stroke (captive), 12.7 – 63.5 mm
• Max. force 150 - 880 N
• Movement / step 12.7 - 127 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
| Size 23, 57 mm, Double Stack Linear hybrid stepper motor (1.8° step angle) | ||||||
| Product No. | Captive | 57M4(X)-V | ||||
| Non-captive | 57L4(X)-V | |||||
| External lin. | E57M4(X)-V | |||||
| Wiring | Bipolar | |||||
| Winding Voltage | 3.25 VDC | 5 VDC | 12 VDC | |||
| Current/Phase | 3.85 A | 2.5 A | 1 A | |||
| Resistance/Phase | 0.8 Ω | 2 Ω | 12 Ω | |||
| Inductance/Phase | 2.3 mH | 7.6 mH | 35 mH | |||
| Power Input | 25 W | |||||
| Weight | 958 g | |||||
| Length | 66 mm | |||||
| Linear movement/step. Screw Ø 9.53 mm (0.375") | Order Code | |||||
| Inches | mm | |||||
| 0.001 | 0.0254 | 1 | ||||
| 0.002 | 0.0508 | 2 | ||||
| 0.0005 | 0.0127 | 3 | ||||
| 0.0025 | 0.0635 | Y | ||||
| 0.005 | 0.127 | Z | ||||
| Series | Double Stack |
|---|---|
| Product type | Linear stepper motor |
| Brand | Haydon Kerk |
