Can-Stack Linear Stepper Motor Haydon Kerk, G4 19000 Ø 20 mm
Lead time if the product is out of stock (business days):

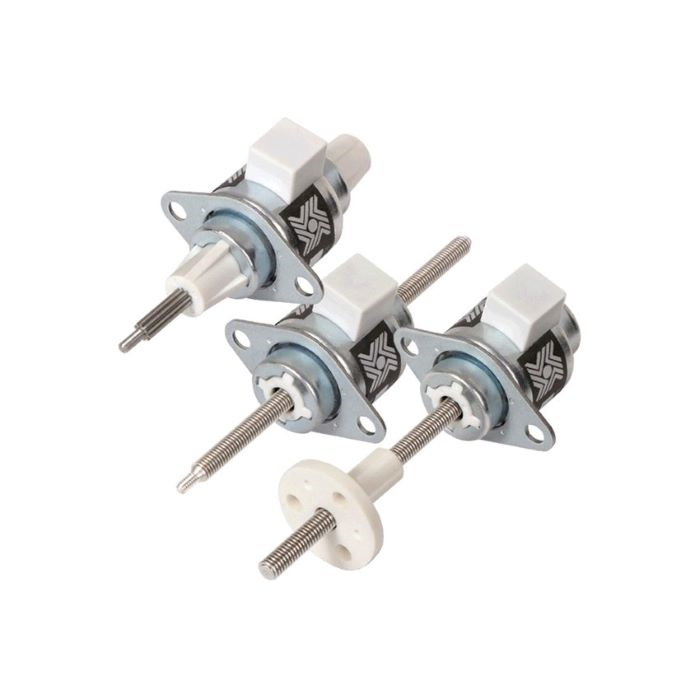

35Series G4 19000 by Haydon Kerk Motion Solutions is a 20 mm stepper motor linear actuator.
• Available in three designs - captive, non-captive and external linear versions.
• Stroke (non-captive, external), up to 150 mm
• Stroke (captive), 14 - 31 mm
• Max. force 3 to 50 N
• Movement / step 13 - 100 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
• Available in three designs - captive, non-captive and external linear versions.
• Stroke (non-captive, external), up to 150 mm
• Stroke (captive), 14 - 31 mm
• Max. force 3 to 50 N
• Movement / step 13 - 100 μm
Applications include medical instrumentation, office equipment, appliances, optics, machinery automation and other automated devices which require precise remote controlled linear movements.
Linear Stepper Motor 20 mm (3/4") HSI 19000 Series | |||||||
Product No. | Captive | 1954 (X)-V | 1944 (X)-V | ||||
Non-captive | 1984 (X)-V | 1934 (X)-V | |||||
External lin. | E1954 (X)-V | E1944 (X)-V | |||||
Wiring | Bipolar | Bipolar | |||||
Step angle | 15° | 7.5° | |||||
Winding voltage | 5 VDC | 12 VDC | 5 VDC | 12 VDC | |||
Current/Phase | 338 mA | 140 mA | 350 mA | 160 mA | |||
Resistance/Phase | 14.8 Ω | 85.5 Ω | 14 Ω | 74.5 Ω | |||
Inductance/Phase | 6.84 mH | 37.8 mH | 6.24 mH | 31.2 mH | |||
Power input | 3.38 W | 3.38 W | |||||
Weight | 31 g | 34 g | |||||
Step Angle | Inches | mm | Order Code | ||||
15° | 0.001 | 0.025 | 1 | ||||
15° | 0.002 | 0.051 | 2 | ||||
15° | 0.004 | 0.102 | 4 | ||||
7,5° | 0.001 | 0.025 | 3 | ||||
7,5° | 0.002 | 0.051 | 2 | ||||
7,5° | 0.0005 | 0.013 | 3 |
Series | Can-Stack |
---|---|
Product type | Linear stepper motor |
Brand | Haydon Kerk |
